| Quantity: | |
|---|---|
on-Line
1 Year
7m
78L/Min
Motor
ABS Plastic

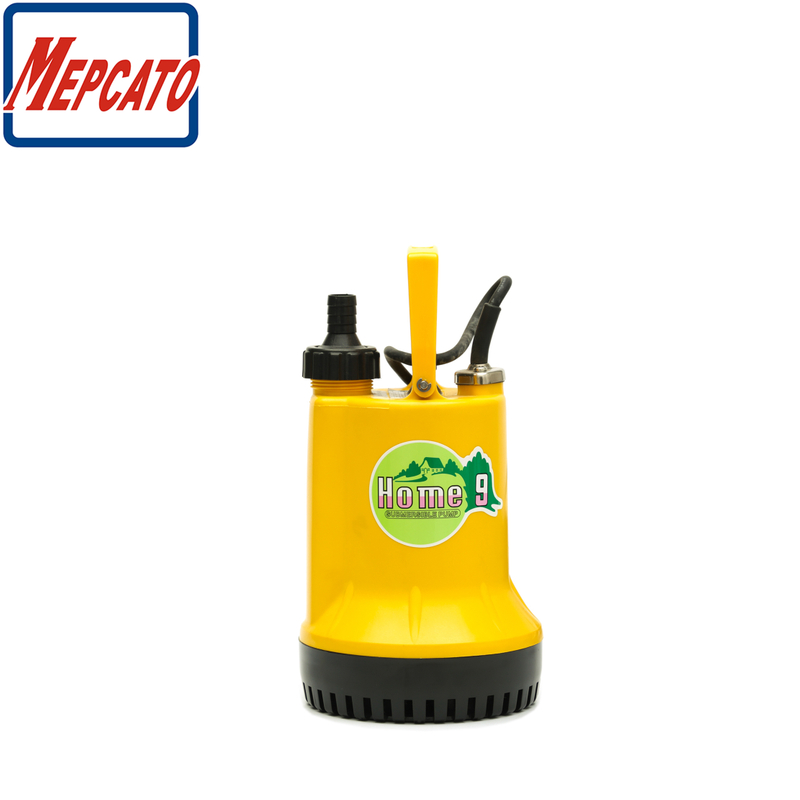

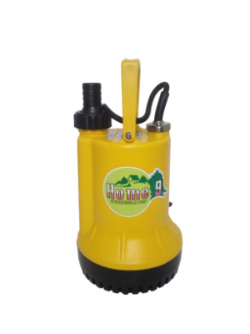

HOME-9(A) Plastic Water Pump
- The application of special weather-proof pp mix fiberglass resin for housing ensures long lasting durability and glossy color, exhibits excellent durability under sunlight and prevents from corrosion.
- Adopt professional control switch utilizing silicon controlled rectifier (SCR)
- Adopt Italy imported mechanical seal and oil seal to make double waterproof protection
- Large carrying handle gets your hold easily

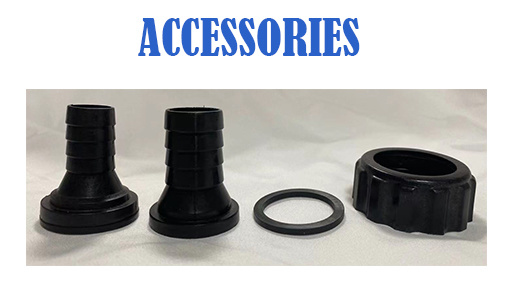

- In additional, 15mm, 20mm and 25mm (1/2inch, 3/4inch and 1inch) total 3 couplings and hose clamps are accompanied with the pump as standard accessories, which will help to accept different kinds of water hose standing.
| Model | Output Power | Caliber | Voltage | Max Capacity | Max Head | LxWxH | Weight | |
| HP | Watt | Inch | V | L/min | m | cm | kg | |
| HOME-9 | 0.12 | 90 | 1/2;3/4;1 | 230/50Hz | 78 | 7 | 16x16x28 | 5.7 |
| HOME-9A | 16x20x28 | 6.1 | ||||||
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
HOME-9(A) Plastic Water Pump
- The application of special weather-proof pp mix fiberglass resin for housing ensures long lasting durability and glossy color, exhibits excellent durability under sunlight and prevents from corrosion.
- Adopt professional control switch utilizing silicon controlled rectifier (SCR)
- Adopt Italy imported mechanical seal and oil seal to make double waterproof protection
- Large carrying handle gets your hold easily
- In additional, 15mm, 20mm and 25mm (1/2inch, 3/4inch and 1inch) total 3 couplings and hose clamps are accompanied with the pump as standard accessories, which will help to accept different kinds of water hose standing.
| Model | Output Power | Caliber | Voltage | Max Capacity | Max Head | LxWxH | Weight | |
| HP | Watt | Inch | V | L/min | m | cm | kg | |
| HOME-9 | 0.12 | 90 | 1/2;3/4;1 | 230/50Hz | 78 | 7 | 16x16x28 | 5.7 |
| HOME-9A | 16x20x28 | 6.1 | ||||||
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
