| Quantity: | |
|---|---|
on-Line
1 Year
38m
9L/Min
Motor
Single-Stage Pump
MCP-35/MCP-65 Coolant pump
Features
- Small dimension
- Pump body: stainless steel
- Impeller: brass
- Mechanical seal: Italy imported mechanical seal
- Auto suction: 8 meters

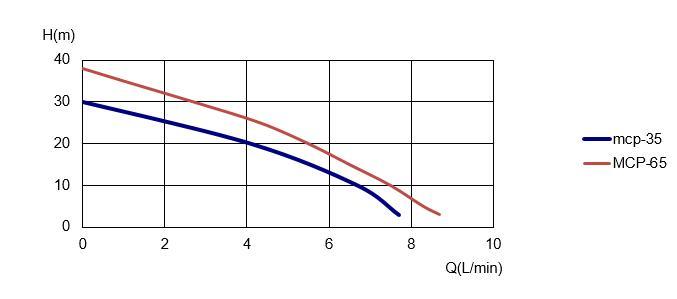

Performance Curve
| Model | Power | Caliber | Phase | Palarity | Voltage | Capacity | Head | Weight |
| HP/Kw | mm | Φ | P | V | L/min | m | kg | |
| MCP-35 | 0.34/0.25 | 12 | 1 | 2 | 230 | 8 | 30 | 4.3 |
| MCP-65 | 0.34/0.25 | 12 | 1 | 2 | 230 | 9 | 38 | 4.32 |
Certifications
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
MCP-35/MCP-65 Coolant pump
Features
- Small dimension
- Pump body: stainless steel
- Impeller: brass
- Mechanical seal: Italy imported mechanical seal
- Auto suction: 8 meters
Performance Curve
| Model | Power | Caliber | Phase | Palarity | Voltage | Capacity | Head | Weight |
| HP/Kw | mm | Φ | P | V | L/min | m | kg | |
| MCP-35 | 0.34/0.25 | 12 | 1 | 2 | 230 | 8 | 30 | 4.3 |
| MCP-65 | 0.34/0.25 | 12 | 1 | 2 | 230 | 9 | 38 | 4.32 |
Certifications
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
